Integrated Electro-hydraulic Machine for Off-highway Vehicle Electrification

A key enabler to electrify off-highway vehicles and improve their energy efficiency.

#This project was a major part of my Ph.D. research, and aimed to electrify off-highway vehicles using the Hybrid Hydraulic-Electric Architecture, proposed by Prof. Perry Li’s team at the University of Minnesota. This work was funded by the U.S. Department of Energy’s Vehicle Technologies Office. My work on this project involved developing the integrated electro-hydraulic machine rated at 20kW with efficiency> #85%, power-density >5kW/kg, and cost <$20/kW.

#I was mentored by my advisor Prof. Eric Severson and worked closely with the hydraulics team mentored by Prof. Jim van de Ven and Prof. Perry Li to come up with an initial design that used the axial flux machine and a radial piston pump. I then developed a multi-physics optimization framework to optimize the electro-magnetic, thermal, and hydraulic aspects of the design to meetthe performance metrics. We #identified a design that meets the performance requirements, and performed a detailed analysis. Finally a prototype was designed based on the selected design, fabricated, and experimentally characterized.

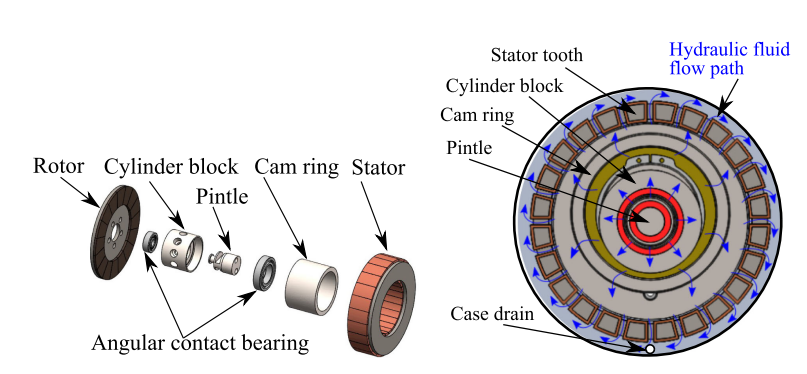

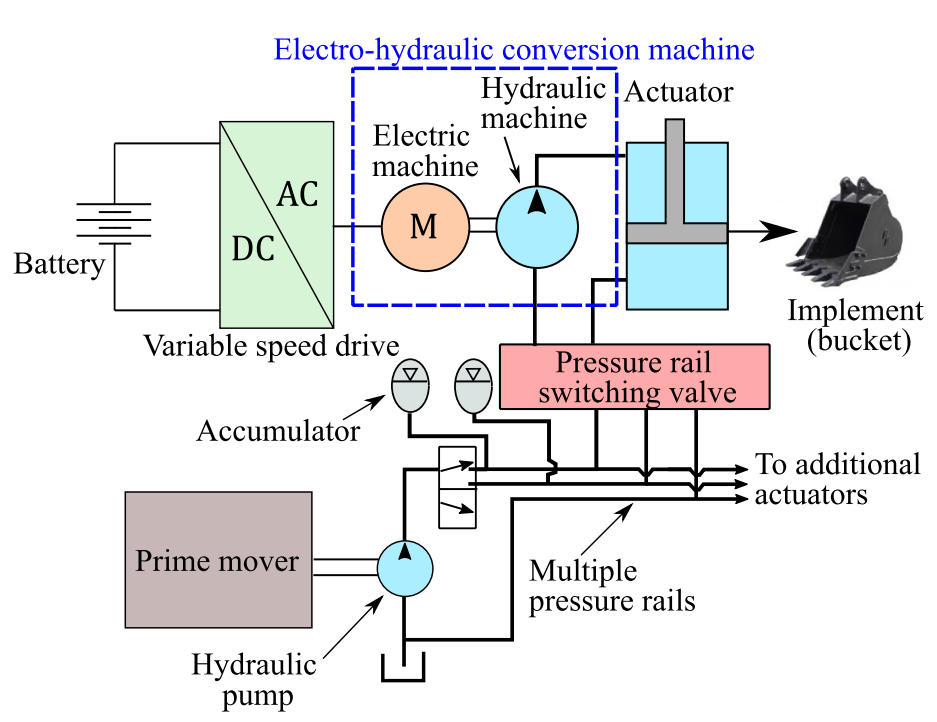

On the left, HHEA architecture. Middle, Proposed integrated electro-hydraulic machine. Right, Fabricated prototype.
